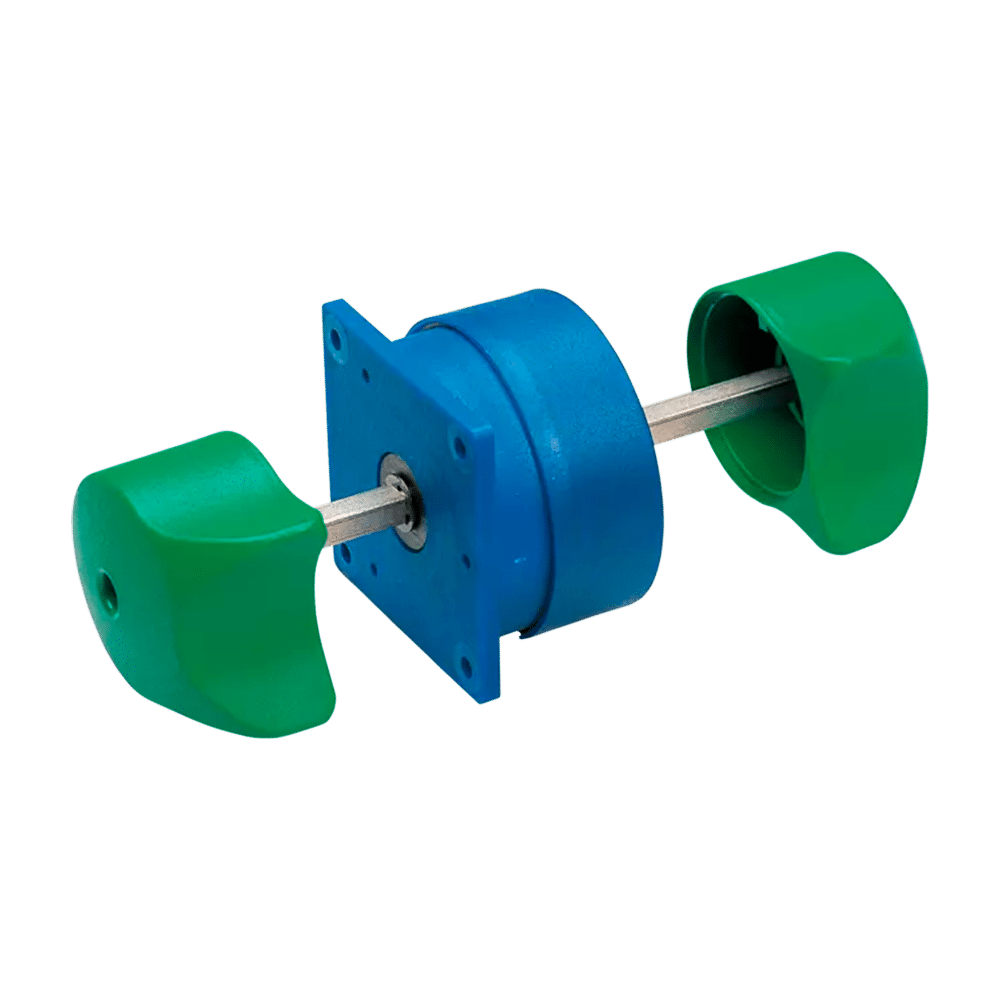

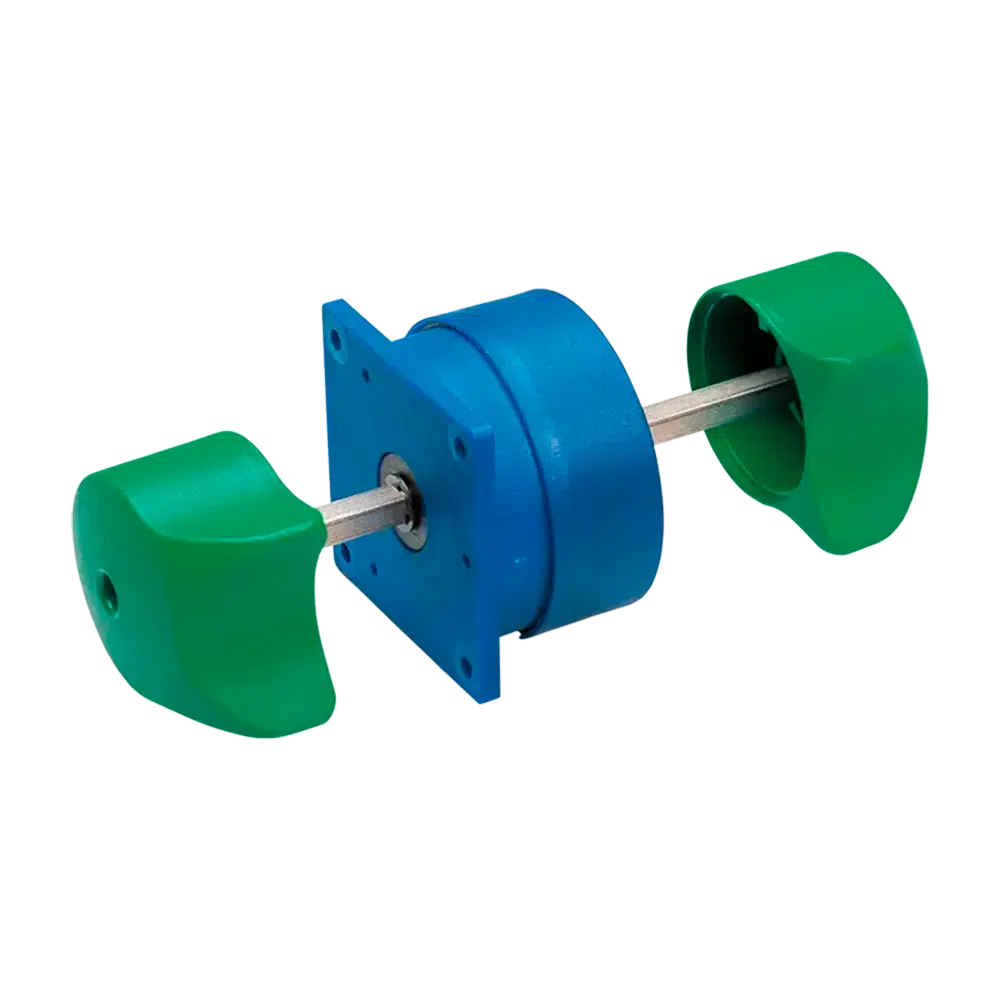

The ROTONDO traction switch is suitable for use as a setpoint generator for electrically powered vehicles and other systems. Its design and its housing with an integrated mounting flange make it very easy to install. The version with a through shaft is used for applications with two butterfly knobs. A version with a single shaft on one side is also available. Besides the analogue signal for the travel speed setpoint, the traction switch also delivers two digital direction signals.
Compatible Applications
FEATURES
Different shaft versions are available (single-sided and through shaft)
Angle of rotation: ± 48°
Membrane-sensor technology
Potentiometer analogue output (V characteristic) for travel speed
Thanks to its small outside diameter measuring just 30 mm, the STIPO traction switch is particularly suitable for installation in pipes or housings with limited installation space. Despite its compact dimensions, a complete microcontroller system and Hall sensor system are integrated into the housing. The dual-redundancy sensors offer the highest degree of safety. To protect the Hall sensors against external magnetic fields, the housing incorporates a solid steel core. Depending on the particular variant, the traction switch provides one or two analogue signals, two digital direction signals and a digital zero-position signal.
Compatible Applications
FEATURES
Non-contacting Hall sensors
Digital outputs for direction and zero-position signals
Active-high and active-low logic available
One/two analogue outputs for travel speed
Different characteristicsavailable (V-, Z-, or X-characteristics)
Suitable for safety-related applications according to EN ISO 13849
The UNIVERSAL traction switch serves as a setpoint generator for electrically powered vehicles. Besides the analogue signal for the travel speed setpoint, the traction switch also delivers two digital direction signals. Using the integrated microswitch, a body protection switch function can be implemented in the tiller head. The UNIVERSAL traction switch is available with various analogue characteristic curves as well as active-low and active-high digital outputs. This ensures compatibility with motor controllers from well-known controller manufacturers.
Compatible Applications
FEATURES
Angle of rotation: ± 45°
Membrane-sensor technology for potentiometers and direction switches
Integrated microswitch for the body protection switch function
The UNIVERSAL PRO traction switch is a setpoint generator for electrically powered vehicles and is predestined for use in harsh environmental conditions due to its completely protected electronics and the use of non-contacting Hall-effect technology.
Besides the analogue signal for the travel speed setpoint, the traction switch also delivers two digital direction signals. Using an integrated microswitch, a body protection switch function can be implemented in the tiller head.
Compatible Applications
FEATURES
Angle of rotation: ± 45°
Non-contacting Hall-effect technology
Integrated microswitch for the body protection switch function
Ideal for use in TEMO 600 and TEMO 200
Two digital direction signals
One analogue signal for travel speed
Various analogue output characteristics available
Nominal supply voltage: 12/24/36/48 VDC
Greater protection against environmental influences
