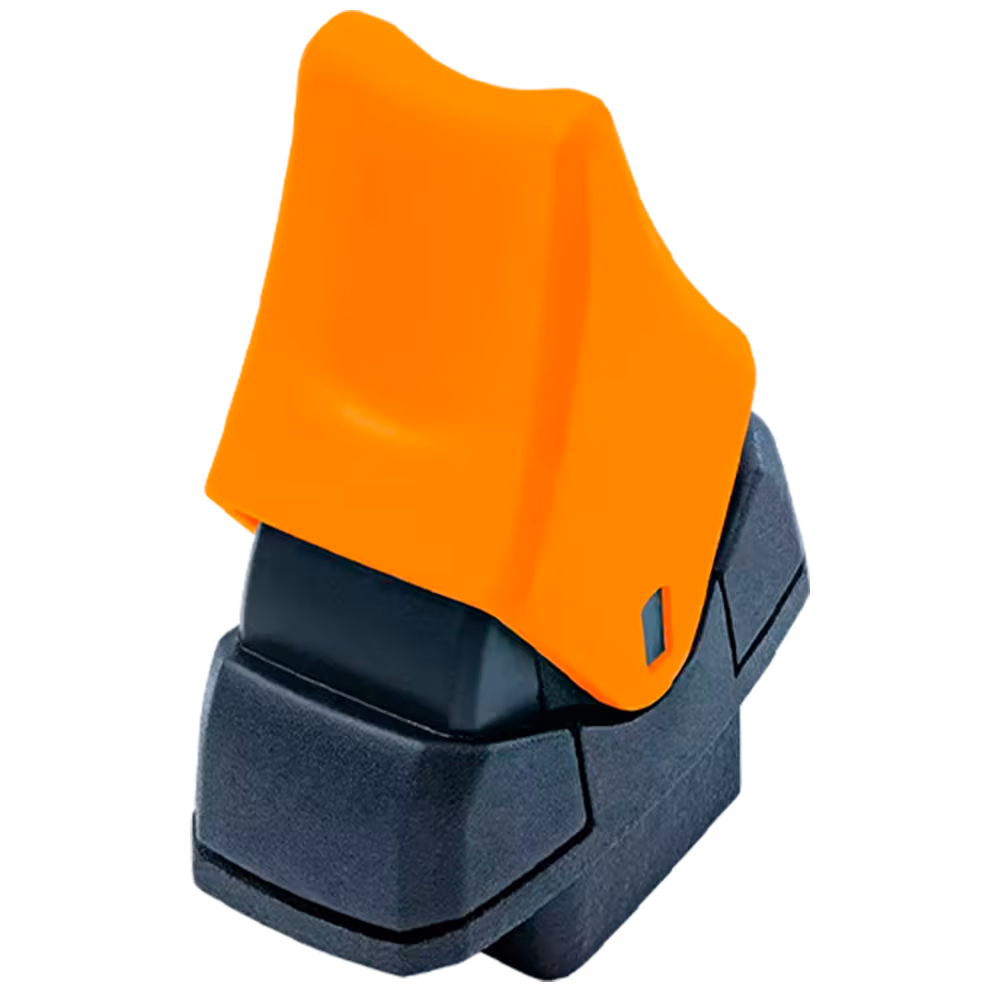

Due to its space-saving design and precise controllability, the MONO RIMBO finger joystick is the ideal solution in limited installation space. The single-axis joystick‘s cap is available in several colours and can be laser-engraved with both standard and customer-specific symbols. The modular design allows it to be used in a wide number of industrial applications.
Compatible Applications
FEATURES
Central zero position
Angle of rotation ± 30°
Contactless Hall-effect sensor technology
Two analogue signals, X characteristic
Sensitive control
Ergonomic design
Protection class IP 68, except plug
Long service life of 5 million cycles
EMC in accordance with EN 12895: 2015-09
EMC 100 V/M in accordance with ISO 11452-2
Functional safety in accordance with EN ISO 13849, PL d
Due to its space-saving design and precise controllability, the MONO RIMBO finger joystick is the ideal solution in limited installation space. The single-axis joystick‘s cap is available in several colours and can be laser-engraved with both standard and customer-specific symbols. The modular design allows it to be used in a wide number of industrial applications. The three-position latching function makes the MONO SCATTA ideal for use as a direction switch.
Compatible Applications
FEATURES
Latching in 3 positions
Angle of rotation ± 30°
Contactless Hall-effect sensor technology
Two analogue signals, X characteristic
Sensitive control
Ergonomic design
Protection class IP 68, except plug
Long service life of 5 million cycles
EMC in accordance with EN 12895: 2015-09
EMC 100 V/M in accordance with ISO 11452-2
Functional safety in accordance with EN ISO 13849, PL d

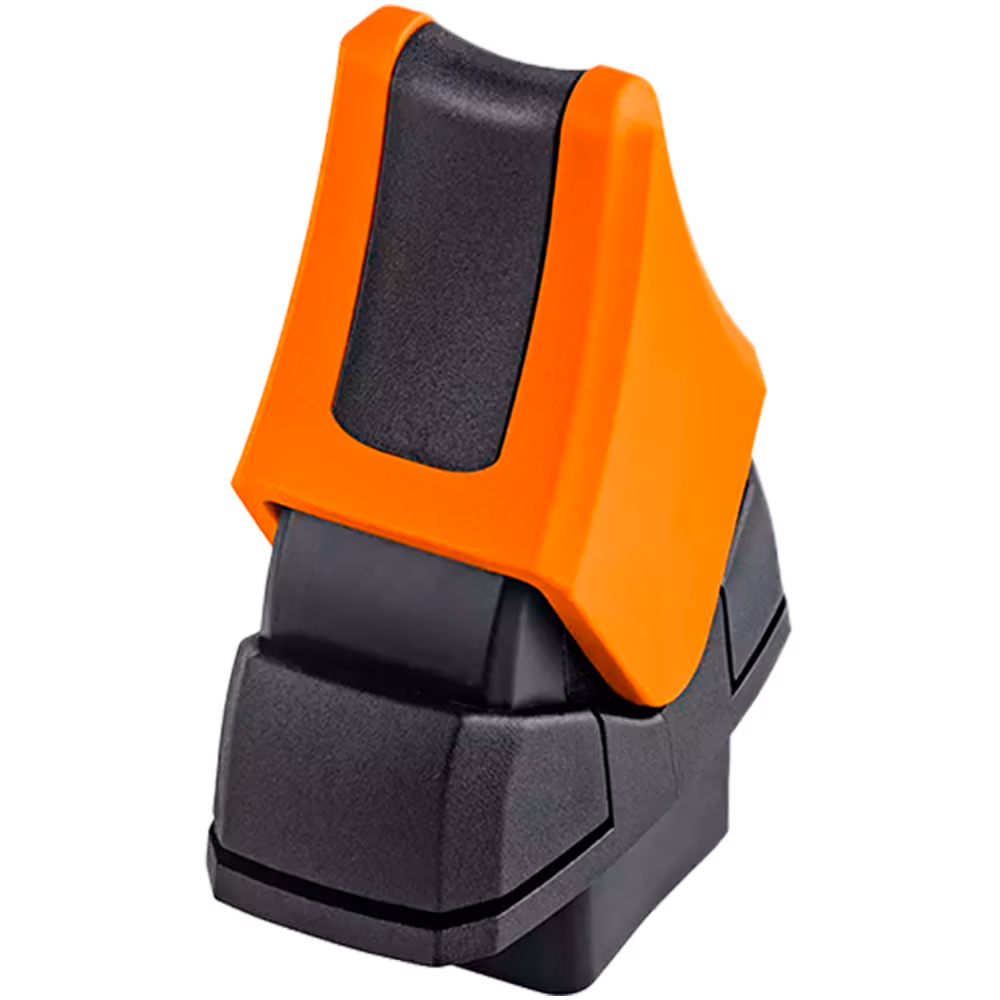

Due to its space-saving design and precise controllability, the MONO VIBRO finger joystick is the ideal solution in limited installation space. The single-axis joystick‘s cap consists of two parts, the inner part can be laser-engraved with both standard and customer-specific symbols. The outer part is available in several colours. The modular design allows it to be used in a wide number of industrial applications. The MONO VIBRO finger joystick provides the operator with haptic feedback through vibration so that he can react correctly to the relevant situation.
Compatible Applications
FEATURES
Central zero position
Angle of rotation ± 30°
Contactless Hall-effect sensor technology
Two analogue signals, X characteristic
Sensitive control
Ergonomic design
Protection class IP 68 according to DIN EN 60529, electronic
IP 5X vibration area, electronic
Long service life of 5 million cycles, analogue output, 1 million cycles, vibration area
EMC in accordance with EN 12895: 2015-09
EMC 100 V/M in accordance with ISO 11452-2
Functional safety in accordance with EN ISO 13849, PL d
Haptic feedback with vibration
Start and duration of vibration is configured by customer
Due to its ergonomic and robust design, the Joystick PACTO offers a wide range of installation options. Its modular design and sensitive control allow it to be used ergonomically with the full hand. Further characteristics of the Joystick PACTO are its intuitive use and its long service life. Besides being used in the ACTRA JOY PLUS armrest, the Joystick is predestined for use in customer-specific applications. In addition a micro switch is available on the top of Joystick PACTO. These could be used for e.g. Horn-, release- or customer specific- functions.
Compatible Applications
FEATURES
Contactless Hall-effect sensor technology
Two axes
Two analogue signals per axis, X characteristic
Ergonomic design
Protection class IP 65 if mounted, except plug
Long service life of 4.0 million cycles except Button (1.0 million cycles)
EMC in accordance with EN 12895
Functional safety in accordance with EN ISO 13849, PL C
Due to its compact and robust design, the XENO thumb joystick offers a wide range of installation options. Its modular design and sensitive control allow it to be used ergonomically with the fingertips. Further characteristics of the XENO thumb joystick are its intuitive use and its long service life. Besides being used in the BRAVA ACTRA MONO 400 PLUS armrest, the thumb joystick is predestined for use in customer-specific applications.
Compatible Applications
FEATURES
Contactless Hall-effect sensor technology
Two axes
Two analogue signals per axis, X characteristic
Ergonomic design
Protection class IP 68, except plug
Long service life of 3.5 million cycles
EMC in accordance with EN 12895
Functional safety in accordance with EN ISO 13849, PL d
