Sealed and robust 3 kW battery charger with rugged and vibration-proof design. SG3 has been awarded by leading OEMs in construction equipment, e-mobility, agriculture, aerial work platforms, outdoor power equipment, mobile robotics and other sectors
Compatible Applications
SUMMARY
Type: SG3
Max DC Output Power: Up to 3000W
Max DC Output Current: Up to 80A (depending on the voltage)

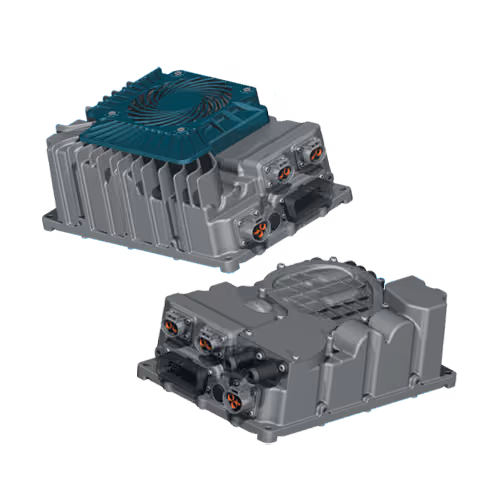

Available in 2 ways - with air or liquid cooling system –, CT3.3 is a concentrate of technology. CT3.3 is characterised on one side by compact design to minimise installation space, and the other also robustness against vibration. Robust and small in size, it is capable of high performance for fast-charging - in typical ZIVAN style. Wide operating temperature range but also high power density, as well as stackability for scalable power make it a jewel of rechargeable battery technology.

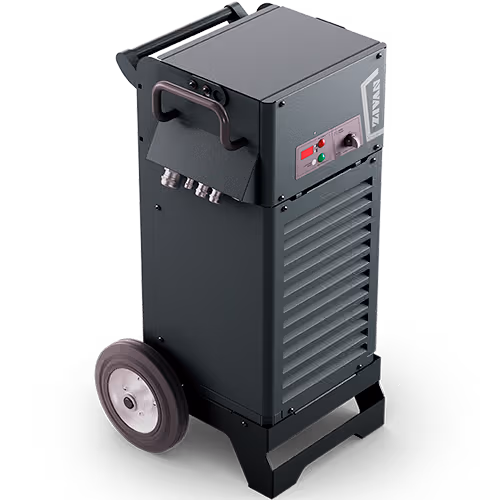

Robust and powerful fast charger, ideal for harsh environment conditions. Designed for easy handling and transportation on the worksite. Compliant to global standards and regulations, it has been awarded by leading OEMs in the Non-Road Mobile Machinery industry.
Compatible Applications
SUMMARY
Type: SG9
Max DC Output Power: 9kW
Max DC Output Current: 90 - 240A (depending on voltage)
AC Input Voltage Range: 100-240V (1-ph), 200-240 (3-ph), 400V (3-ph+N)

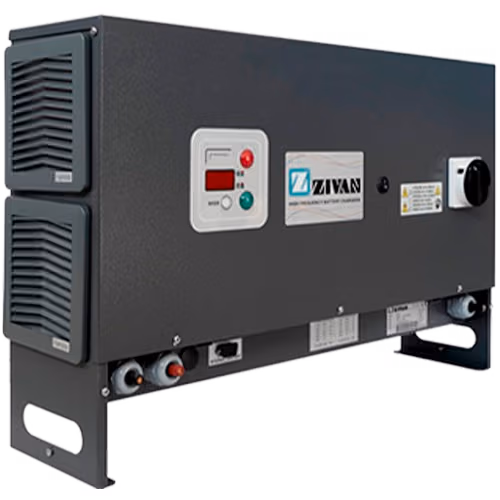

Robust and powerful battery chargers for fast and opportunity charging. Flexible solution with reliable field-proven power modules. Applications in material handling, GSE, non-road mobile machinery, AGV/AMR and other sectors.
Compatible Applications
SUMMARY
Type: BG9
Max DC Output Power: 9kW
Max DC Output Current: 80A - 200A (depending on voltage)
Max DC Output Current: 160A - 400A (depending on voltage)
AC Input Voltage Range: 400 - 480VAC
IP Rating: 54
Battery Type: Wet / AGM & Lithium
Optional: Multivoltage 96V/48V 160A

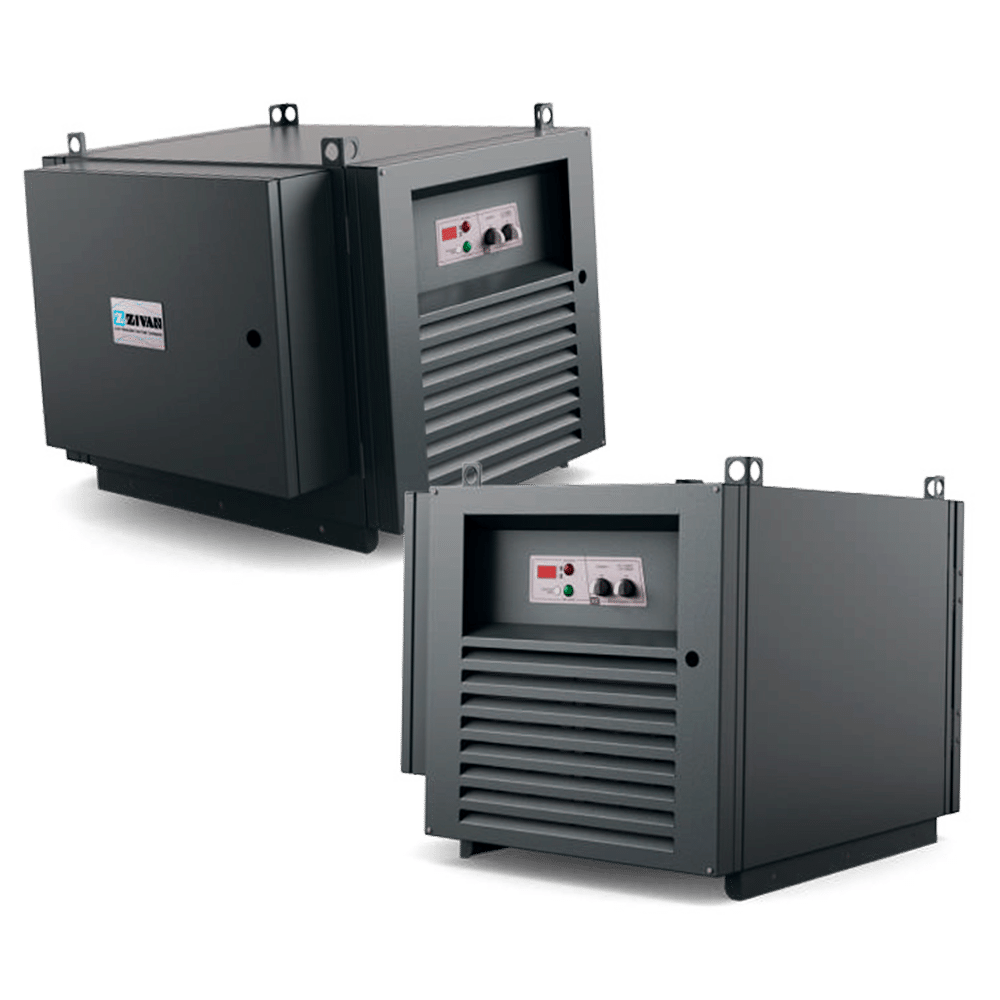

FC36
OVERVIEW
Compatible Applications
SUMMARY
Type: FC36
Max DC Output Power: 36kW
Max DC Output Current: 320A - 580A (depending on voltage)
AC Input Voltage Range: 400 - 480VAC
IP Rating: 54
Battery Type: Wet / AGM & Lithium
Optional: Multivoltage 96V/48V 320A
