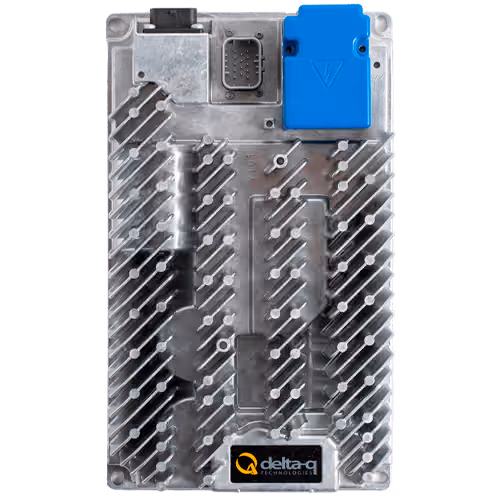

The RQ Series is a compact, ruggedized and fully-sealed charging series that is setting a higher quality standard and customer experience in the low-power battery charger market.
Compatible Applications
SUMMARY
Type: RQ350, RQ700
Max DC Output Power: 350W & 700W
Voltage: 12, 24, 36, 48V
Max DC Output Current: 7.5 - 30A (depending on voltage)
The IC Series are compact, flexible, user-friendly industrial chargers that optimally charge lead-acid (wet, AGM, gel) and lithium battery packs to provide the best performance for the intended application.
Compatible Applications
SUMMARY
Type: IC650, IC900, IC1200
Max DC Output Power: 650, 900, 1200W
Voltage: 24, 36, 48V
Max DC Output Current: 13.5 - 50A (depending on voltage)
The ICL Series are reliable, compact, rugged, automotive grade chargers that are enhanced to charge 9S to 34S lithium battery packs optimizing battery life and application performance.
Compatible Applications
SUMMARY
Type: ICL900, ICL1200, ICL1500
Max DC Output Power: 900, 1200, 1500W
Voltage: 57, 85, 120V
Max DC Output Current: 15 - 20A (depending on voltage)
The XV Series is the best-in-class, 3-in-1 charging system. It is compact, scalable and reliable – an ideal charging solution for powertrain electrification!
Compatible Applications
SUMMARY
Type: SG9
Max DC Output Power: 9kW
Max DC Output Current: 90 - 240A (depending on voltage)
AC Input Voltage Range: 100-240V (1-ph), 200-240 (3-ph), 400V (3-ph+N)
Our expertise lies in creating cohesive systems that integrate seamlessly into vehicles. From subsystem assemblies to complete boxed systems with advanced electronics, we offer a comprehensive range of solutions that include electric motors, motor controllers, transaxles, wheel drives, DC-DC converters, joysticks, tiller heads, pedals, batteries, and chargers.
DEALER OF THE
FOLLOWING BRANDS
As a developer, importer, and representative of top-tier brands, we distinguish ourselves with in-house trained application and service engineers who bring unparalleled expertise in E-control systems. By combining innovative technologies and exceptional service, Q-Tronic remains at the forefront of powering mobility solutions.
