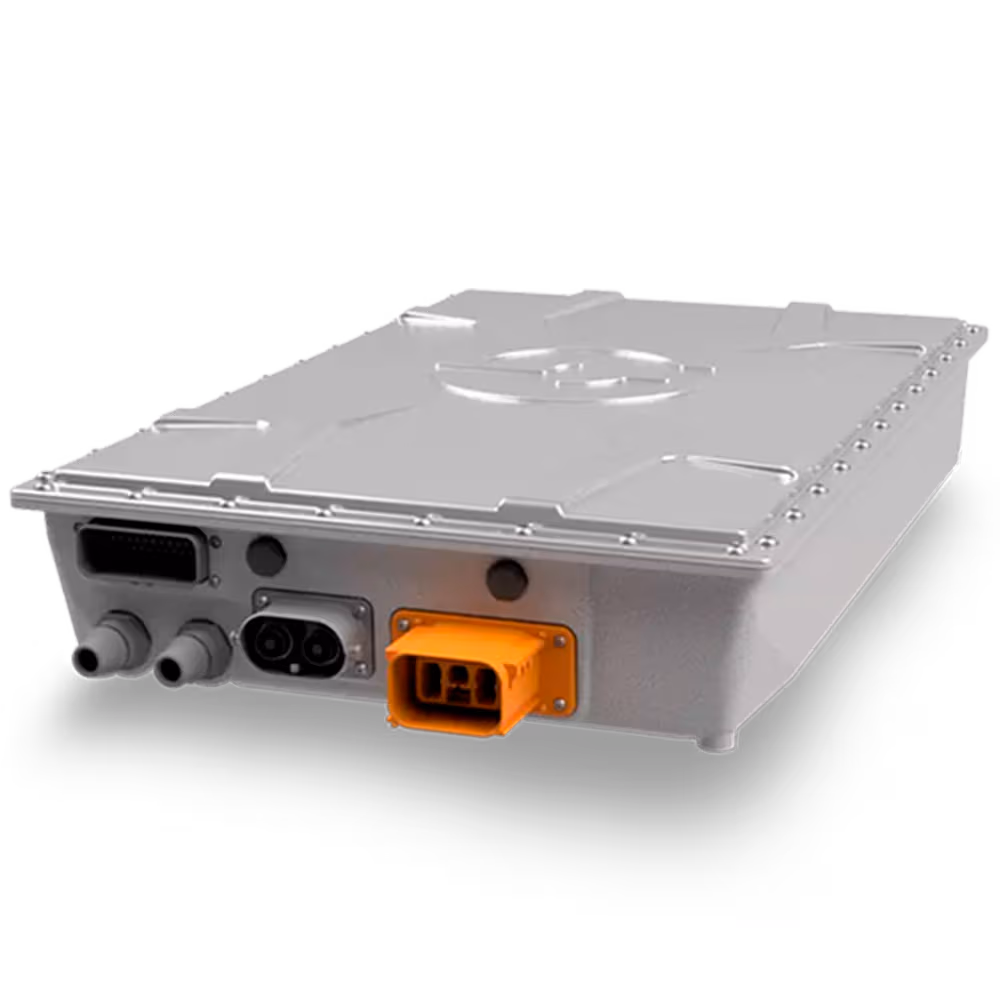

The OBC V2X from Stercom Power Solutions is a revolutionary onboard charger that enables electric vehicles not only to charge but also to function as an energy source. This innovative bidirectional charger (V2X) connects vehicles to the power grid, buildings, and other devices and vehicles. Thanks to its outstanding performance and versatility, it sets new standards in e-mobility.
Compatible Applications
SUMMARY
Type: Bidirectional Onboard Charger
Max DC Output Power: 22kW
Voltage: 550V / 950V
Max DC Output Current: 70A / 40A (depending on voltage)
Our ultra compact OnBoard Charger OBC_22kW is compatible with all single or three-phase AC charging stations and Type 2 wall-boxes.
The optimized and adaptable charging process gently charges all common high-voltage batteries in various voltage classes up to 850VDC.
By using the latest silicon carbide semiconductors, we set the standards in terms of efficiency, volume and weight.
For very large batteries, the charging power can be scaled by connecting several OBC_22kW in parallel using different parallel modes.
- Very efficient switching technology using Silicon Carbide (SiC)-technology (Effiiency >94%)
- Input power factor > 99 %, very low THD
- Integrated ComModule for automatic inlet detection and charging mode selection (CP, PP)
- Water Cooling
Option: "embedded PowerLineCommunication" (ePLC) for DC charging via a CCS input The OBC automatically detects the connection with a DC fast charging station, handles the monitoring and security mechanisms on the CCS connector and organizes the safe "pairing" of the charging station with "his battery" in accordance with the current standards.
Compatible Applications
SUMMARY
Type: OBC
Max DC Output Power: 22kW
Voltage: 450V / 800 / 850V
Max DC Output Current: 70A / 40A / 32A (depending on voltage)
AC Input Voltage Range: 200 - 450Vdc / 420 - 800Vdc / 550 - 850Vdc
